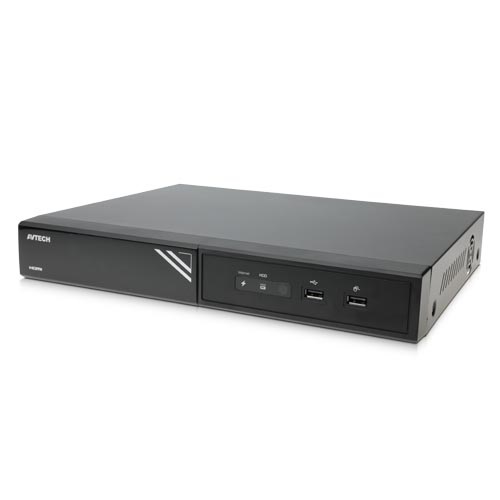

DGD1005
Feature
| Video Compression Format | H.265 |
|---|---|
| Video Signal | IP / TVI / CVI / Analog HD / 960H |
| Video Input | 4 pentabrid channels (IP / TVI / CVI / Analog HD / 960H), within which IP channels are up to 2 channels |
| Video Input Interface | Analog: Composite video signal 1 Vp-p 75Ω BNC IP: Ethernet, 10/100 Base-T |
| Video Output | BNC, VGA, HDMI (4K2K display) |
| Video Resolution | Analog: 5MP / 5MLITE / 4MP / 4MLITE / FHD (1080P) / HD / 960H / Frame / CIF IP: 2592 x 1944 / 2048 x 1536 / 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
| Max. Recording Rate | Analog Mode: 24 IPS @ 5MP ; 32 IPS @ 4MP ; 60 IPS @ FHD (1080P) 2CH IP Mode: 30 IPS @ 2592 x 1944 (5MP) ; 48 IPS @ 2048 x 1536 (3MP) ; 60 IPS @ 1920 x 1080 |
| Recording Mode | Manual / Timer / Motion / Alarm / Remote |
| Playback Channel | 4CH |
| Quick Search | Time / Motion / Alarm search mode |
| Backup Device | USB 2.0 drive / Network |
| Regular Backup | YES |
| Audio Input | 4 audio input |
| Audio Output | 1 audio output (Mono) |
| RS485 | YES |
| Alarm input | 4 |
| Alarm Output | 1 |
| Hard Disk Storage | 14TB SATA HDD x 1 or external disk array x 1 connected to the recorder via the eSATA interface |
| SATA Interface | YES |
| eSATA Interface | Expandable with a SATA to eSATA cable |
| Image Quality Setting | SUPER BEST / BEST / HIGH / NORMAL |
| USB Mouse Control | YES |
| Motion Detection Area | 16 × 12 grids per channel |
| Motion Detection Sensitivity | 3 adjustable parameters for accurate detection |
| Event Notification | Push Video / Push Status / FTP / E-Mail |
| Event Pop-up & Preview | YES |
| Scenario Setup | YES |
| Picture Zoom | 2X digital zoom |
| PTZ Control | YES |
| Key Lock (Password Protection) | YES |
| User Level | 4 user levels for different access privilege |
| Video Loss Detection | YES |
| Camera Title | Supports up to 25 letters |
| Video Adjustable | Hue / Saturation / Contrast / Brightness |
| Date Display Format | YY/MM/DD, DD/MM/YY & MM/DD/YY |
| Daylight Saving | YES |
| Power Source (±10%) | DC12V / 2A |
| Operating Temperature | 10ºC ~ 40ºC (50ºF ~104ºF) |
| Operating Humidity | 10% ~ 85% |
| Dimensions (mm) | 260(W) × 48(H) × 235.7(D) |
| Net Weight (kg) | 1.3 |
| Ethernet | 10/100 Base-T. Supports remote control and live view via Ethernet |
| Network Protocol | TCP/IP, PPPOE, DHCP and DDNS |
