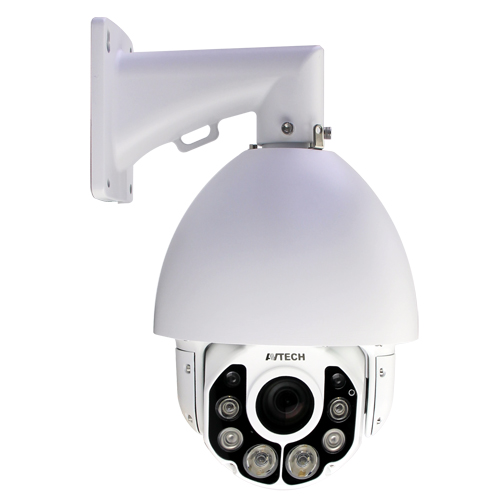

AVTECH AVZ593

AVZ593

Tribrid video output of IP, TVI and AHD

Zoom lens of f4.5 ~ 135mm with 30x optical zoom and auto focus

External alarm I/O device connection

WDR to increase image recognizability in overexposure and dark areas

IR effective range up to 200 meters

IP66 for outdoor application

Line in / out jacks available for audio transmission

Video Output	IP, TVI,AHD and CVBS
Compression Format	H.264 (Main Profile) / MJPEG
Video Resolution	1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240
Frame Rate	30fps
Multiple Video Streaming	4 (H.264 /MJPEG)
Bitrate Control	SVBR control (VBR + Max bitrate)
Image Sensor	1/2.8" SONY CMOS image sensor
Min Illumination	0.1 Lux / F1.8(Wide)~F4.4(Tele), 0 Lux (IR LED ON)
Shutter Speed	1 / 60 (1/50) to 1 / 100,000 sec.
S/N Ratio	More than 48dB (AGC off)
Lens	f4.5 ~ 135mm / F1.8 (Wide) ~ 4.4(Tele), auto focus
Viewing Angle	1X: 60.8° (Horizontal) / 35.3° (Vertical) / 68.3° (Diagonal) 30X: 2.5° (Horizontal) / 1.4° (Vertical) / 2.8° (Diagonal)
IR LED	8 Units
IR Effective Distance	Default: Up to 200 meters / IR Turbo mode: More than 200 meters
IR Shift	YES
Smart Light Control	YES
White Balance	Auto / 2500K / 3200K / 4200K / 5800K / 9500K
AGC	YES
IRIS Mode	YES
Sharpness	YES
WDR	YES
POE	YES
External Alarm I/O	YES (1 input / 1 output)
RAM	20MB
MicroSD Card Slot	YES (up to 64GB)
RS-485	YES
Weather-proof	IP66
Operating Temperature	-25℃ ~ 50℃
Operating Humidity	90% or less relative humidity
Power Source (±10%)	AC 24V / DC19V
Current Consumption (±10%)	DC19V / 1.3A
Power Consumption (±10%)	PoE / PoN: 31.3W; DC Adapter: 25W
Net Weight (kg)	6.9
